Division (3D)

Divide a cell based on 3D connectivity. It should be used in following two cases:

Divide incorrect merged cells that are spatially separated

  1. The label 2 should be divided into two cells due to the careless incorrect merge operation by the user.

    slice1

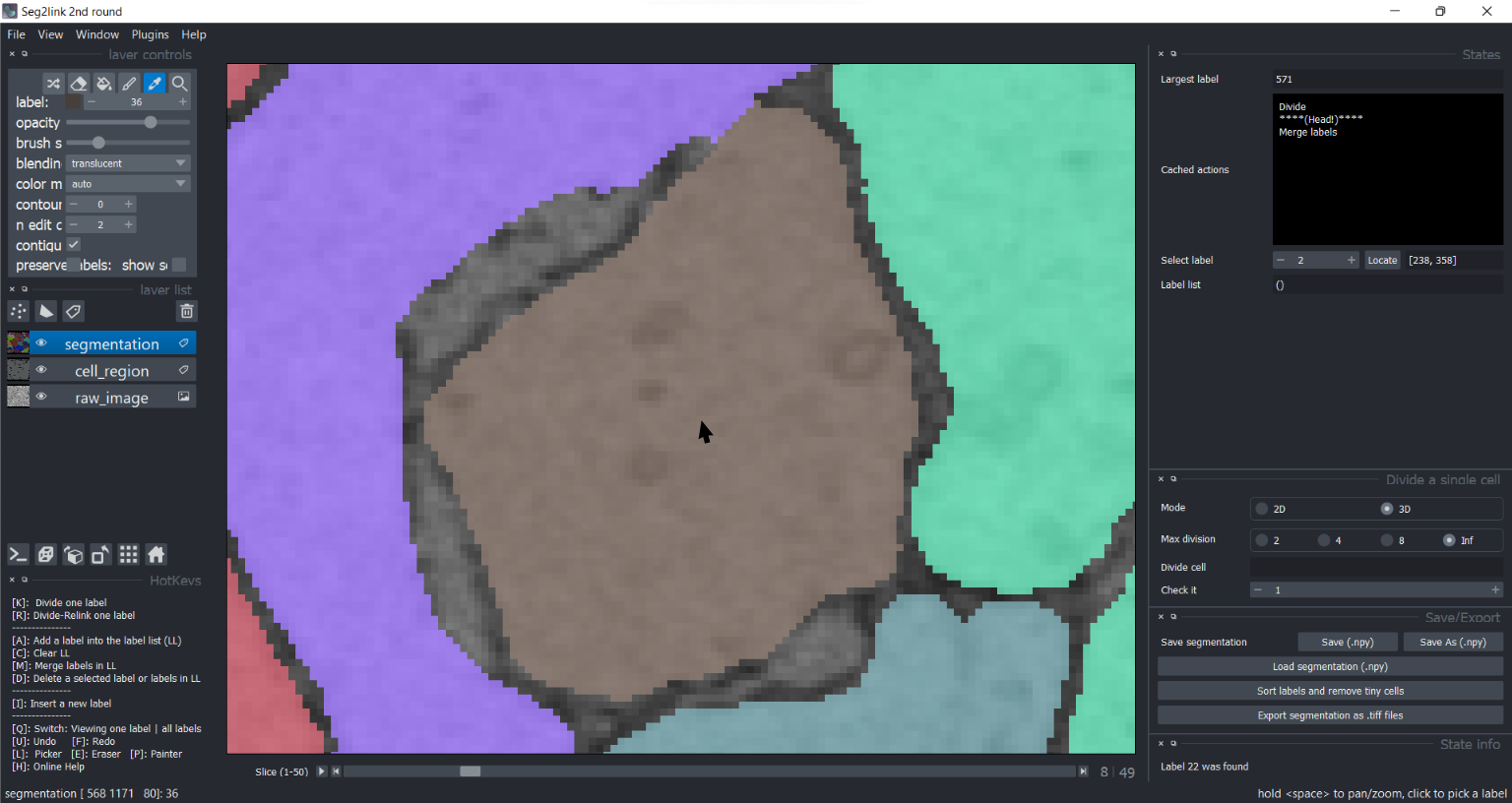

  2. Choose 3D mode. Click the label 2 in Picker Mode. Then press K to divide it. slice1

    • The label was correctly divided into two cells.

Divide two cells connected along z-axis

  1. Here are three slices of label 36. Suppose we need to divide it into two cells, with slice 10 as the boundary.

    Slice 9 slice1 Slice 10 slice1 Slice 11 slice1

  2. Move to slice 10. Use bucket tool to fill the cell region with label 0 (i.e. as boundary)

    slice1

  3. Go back to slice 9. Click label 36. Press K in 3D mode.

    Slice 9 slice1 Slice 10 slice1 Slice 11 slice1

    The label 36 has been divided into two cells along z-axis!
